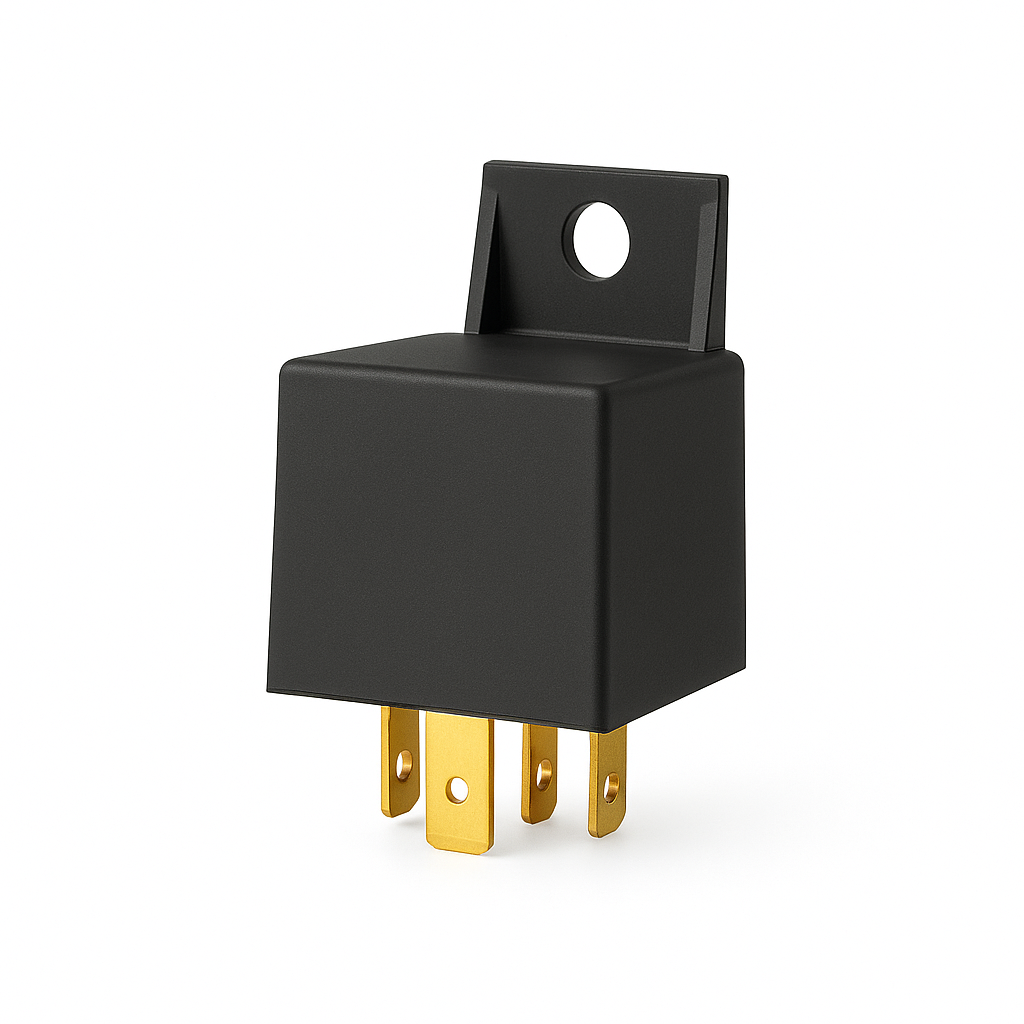

Horn Relays
Horn Relays, which are small but strong components, find increasing use in automotive, industrial, and electronic applications.
Technical Specs
Contact via WhatsApp
Contact via Email
Horn Relays, which are small but strong components, find increasing use in automotive, industrial, and electronic applications.
Technical Specs
As a top-tier HORN RELAYS manufacturer in India, Rao Relays is known for providing high-quality, performance-oriented relays that guarantee outstanding horn function across various vehicles.
Rao Relays, your trustworthy HORN RELAYS supplier in India, provides scalable solutions for OEMs, distributors, and export markets, whether you need standard models or customized relay configurations.
Detailed performance parameters
| Parameter | Specification |
|---|---|
| Dimensions (mm) L × W × H (Approx) | 53.0 × 32.9 × 29.0 |
| Contact Form | 1A, 1B, 1C |
| Rated Switching Current | 30A / 12VDC, 20A / 12VDC |
| Max. Switching Voltage | 14VDC |
| Max. Switching Current | 30A |
| Max. Switching Power | 420W |
| Contact Resistance (Initial) | 3.6m ohm (Typically) |
| Coil Voltage | 12V, 24V |
| Coil Power Consumption | 1.9W |
| Dielectric Strength (Between open Contacts) | 1000V AC / 1 min |
| Dielectric Strength (Between Coil & Contacts) | 750V AC / 1 min |
| Insulation Resistance | >100M ohms / 500VDC |
| Electrical Life | 1×10⁵ OPS |
| Mechanical Life | 1×10⁶ OPS |
| Ambient Temp. Range | 10°C to 60°C |
| Terminal Shape | Plug-In |
A horn relay is a necessary part of a car that controls the high current needed to make the vehicle's horn function. When the horn button is on, the relay functions as a lock to link the horn to the power source, guaranteeing that the horn receives sufficient current without routing that current through the wiring of the steering column or dashboard.
The lack of a relay would mean that the horn switch would carry the entire current load, which could result in overheating, a drop in voltage, or early failure of components. Rao Relays, a famous HORN RELAYS exporter in India, assures that each product needs testing for voltage capacity, current handling, switching speed, and durability.
Rao Relays, a trusted Horn Relay manufacturer in India, offers dependable and performance-verified solutions for a range of automotive and industrial applications.
Our high quality horn relays ensure that passenger car horns function smoothly and reliably. We are a top Horn Relay manufacturer in India, making relays that work perfectly with modern vehicle electronics to avoid voltage drops and guarantee an instant sound reaction.
It is necessary for heavy vehicles to have strong horns and long-lasting relays. Rao Relays, an expert HORN RELAYS supplier in India, offers high-amperage horn relays designed to meet the requirements of commercial transport systems.
Even though two-wheelers have limited space, performance must not be compromised. Our compact relays, produced by a skilled Horn Relay manufacturer in India, provide reliable switching performance in the smallest electrical systems.
With over 22 years of experience, we provide high-performance relays that meet the demanding requirements of modern vehicles. Our solutions are engineered for reliability across all automobile applications.
At Rao Relays, excellence goes beyond a standard, it is a commitment we embody. We are a leading Horn Relay manufacturer in India, and we apply advanced engineering, accurate manufacturing methods, and top-tier quality control into each relay we make. As an acknowledged HORN RELAYS supplier and exporter in India, we understand the multiple requirements of automotive OEMs, aftermarket brands, and manufacturers of heavy-duty vehicles.
We are a reliable HORN RELAYS exporter in India, providing thorough packaging solutions to safeguard our products during transportation.
Relays are wrapped with moisture-proof material to ensure product integrity.
Inner packaging absorbs shocks to prevent damage during international transit.
Trusted logistics partners ensure safe, on-time delivery worldwide.
Our team is ready to assist you with technical specifications, pricing, and delivery options.
